Automate Chromatic with GitHub Actions

Chromatic provides a GitHub Action to help you automate your visual regression tests and publish Storybook.

Workflow setup

In your .github/workflows directory, create a new file called chromatic.yml and add the following:

name: "Chromatic"

on: push

jobs:
  chromatic:
    name: Run Chromatic
    runs-on: ubuntu-latest
    steps:
      - name: Checkout code
        uses: actions/checkout@v4
        with:
          fetch-depth: 0
      - uses: actions/setup-node@v4
        with:
          node-version: 20
      - name: Install dependencies
        # ⚠️ See your package manager's documentation for the correct command to install dependencies in a CI environment.
        run: npm ci
      - name: Run Chromatic
        uses: chromaui/action@latest
        with:
          # ⚠️ Make sure to configure a `CHROMATIC_PROJECT_TOKEN` repository secret
          projectToken: ${{ secrets.CHROMATIC_PROJECT_TOKEN }}

name: "Chromatic"

on: push

jobs:
  playwright:
    runs-on: ubuntu-latest
    container:
      image: mcr.microsoft.com/playwright:v1.49.0-jammy
    steps:
      - uses: actions/checkout@v4
        with:
          fetch-depth: 0
      - uses: actions/setup-node@v4
        with:
          node-version: 20
      - name: Install dependencies
        # ⚠️ See your package manager's documentation for the correct command to install dependencies in a CI environment.
        run: npm ci
      - name: Run Playwright tests
        run: npx playwright test
        env:
          HOME: /root
      - uses: actions/upload-artifact@v4
        if: always()
        with:
          # Chromatic automatically defaults to the test-results directory.
          # Replace with the path to your custom directory and adjust the CHROMATIC_ARCHIVE_LOCATION environment variable accordingly.
          name: test-results
          path: ./test-results
          retention-days: 30
  chromatic:
    name: Run Chromatic
    needs: playwright
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4
        with:
          fetch-depth: 0
      - uses: actions/setup-node@v4
        with:
          node-version: 20
      - name: Install dependencies
         # ⚠️ See your package manager's documentation for the correct command to install dependencies in a CI environment.
        run: npm ci
      - name: Download Playwright test results
        uses: actions/download-artifact@v4
        with:
          name: test-results
          path: ./test-results
      - name: Run Chromatic
        uses: chromaui/action@latest
        with:
          # ⚠️ Enable Playwright
          playwright: true
          # ⚠️ Make sure to configure a `CHROMATIC_PROJECT_TOKEN` repository secret
          projectToken: ${{ secrets.CHROMATIC_PROJECT_TOKEN }}
        # ⚠️ Optionally configure the archive location with env vars
        env: CHROMATIC_ARCHIVE_LOCATION=./test-results

name: "Chromatic"

on: push

jobs:
  cypress:
    name: Run Cypress
    runs-on: ubuntu-latest
    container:
      image: cypress/browsers:node-20.18.0-chrome-130.0.6723.69-1-ff-131.0.3-edge-130.0.2849.52-1
      options: --user 1001
    steps:
      - uses: actions/checkout@v4
        with:
          fetch-depth: 0
      - uses: actions/setup-node@v4
        with:
          node-version: 20
      - name: Install dependencies
        # ⚠️ See your package manager's documentation for the correct command to install dependencies in a CI environment.
        run: npm ci
      - name: Run Cypress tests
        uses: cypress-io/github-action@v6
        env:
          ELECTRON_EXTRA_LAUNCH_ARGS: "--remote-debugging-port=9222"
        with:
          start: npm run dev
      - uses: actions/upload-artifact@v4
        with:
          # Chromatic automatically defaults to the cypress/downloads directory.
          # Replace with the path to your custom directory and adjust the CHROMATIC_ARCHIVE_LOCATION environment variable accordingly.
          name: test-results
          path: ./cypress/downloads
          retention-days: 30
  chromatic:
    name: Run Chromatic
    needs: cypress
    runs-on: ubuntu-latest
    steps:
      - name: Checkout code
        uses: actions/checkout@v4
        with:
          fetch-depth: 0
      - uses: actions/setup-node@v4
        with:
          node-version: 20
      - name: Install dependencies
        # ⚠️ See your package manager's documentation for the correct command to install dependencies in a CI environment.
        run: npm ci
      - name: Download Cypress test results
        uses: actions/download-artifact@v4
        with:
          name: test-results
          path: ./cypress/downloads
      - name: Run Chromatic
        uses: chromaui/action@latest
        with:
          # ⚠️ Enable Cypress
          cypress: true
          # ⚠️ Make sure to configure a `CHROMATIC_PROJECT_TOKEN` repository secret
          projectToken: ${{ secrets.CHROMATIC_PROJECT_TOKEN }}
        # ⚠️ Optionally configure the archive location with env vars
        env:
          CHROMATIC_ARCHIVE_LOCATION: ./cypress/downloads

This is a fairly basic setup. More advanced options are explained below.

Project token secret

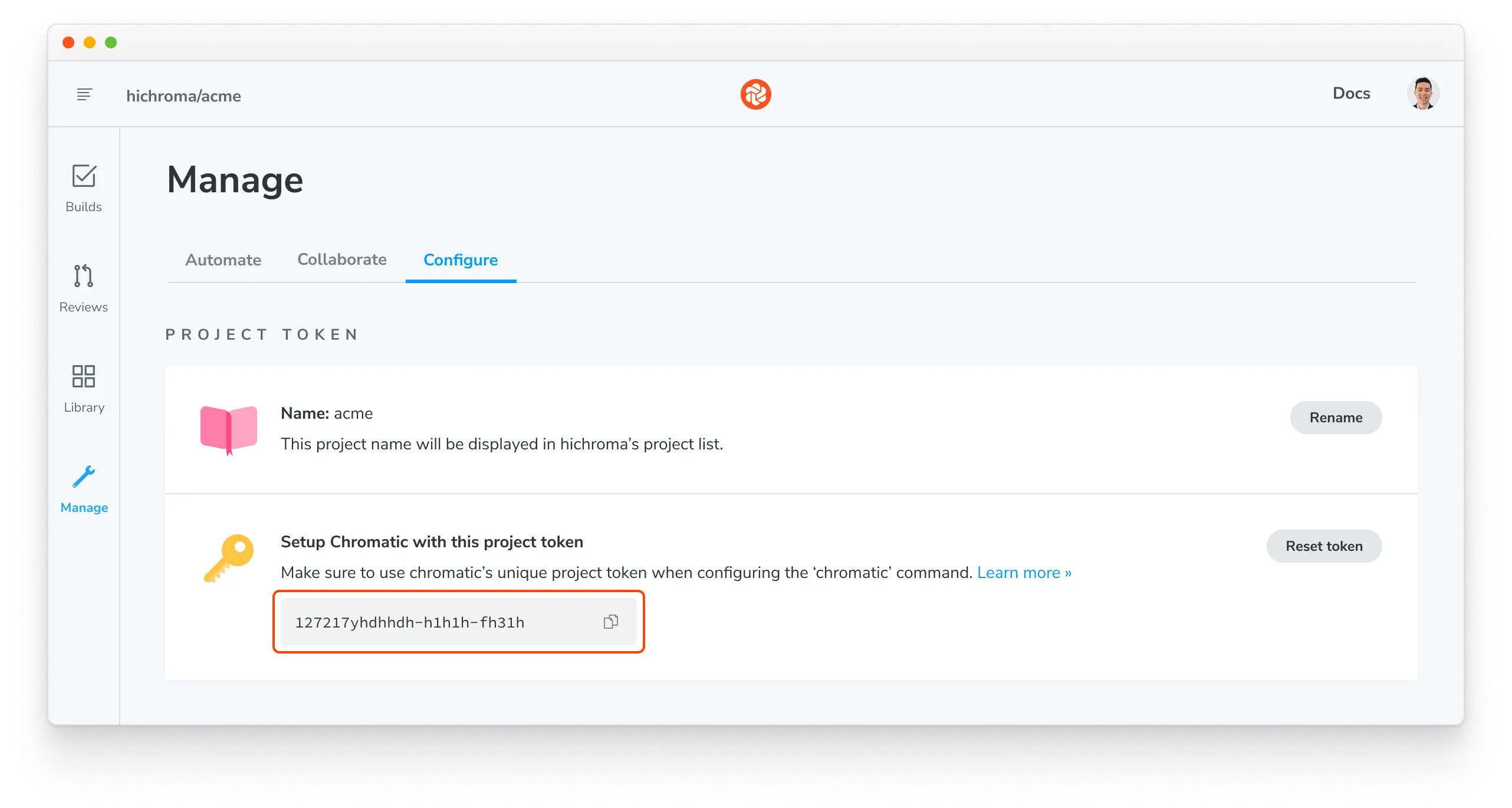

To securely provide the projectToken to Chromatic, you must configure a GitHub repository secret. First, find your project on Chromatic.com and go to Manage and then Configure. Copy the project token.

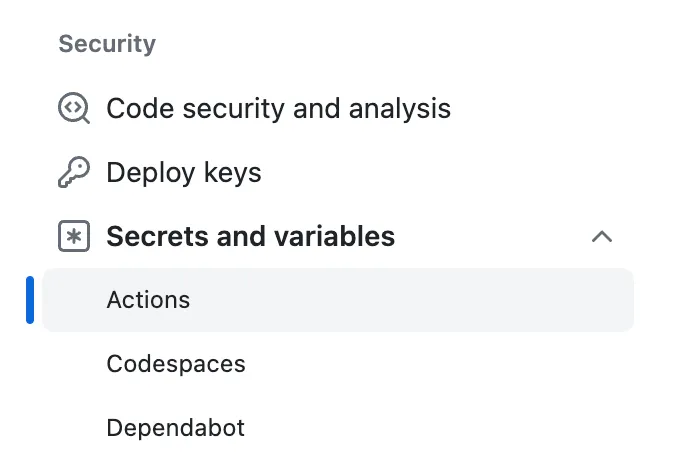

On GitHub, go to the Settings tab on your repository. Under Security, find Secrets and variables and then Actions. Click New repository secret.

Set CHROMATIC_PROJECT_TOKEN as the Name and paste the project token as the Secret. Click Add secret to save the value.

Forked repositories

GitHub secrets work at a repository level. Forked repositories will not have access to them. If you want to run Chromatic on cross-repository (forked) PRs, you’ll have to expose the projectToken by including it as plaintext in your chromatic.yml workflow file. Be aware that anyone with access to this file will be able to run Chromatic builds on your project, consuming your snapshot quota. You can reset the project token on the Manage > Configure screen at any time if you think it may have been compromised.

Pinning the CLI version

While the CLI follows semantic versioning, the GitHub Action typically auto-upgrades to the latest version. However, it’s possible to pin the CLI version by changing the tag:

• To automatically receive all new updates, use chromaui/action@latest (the default).
• To automatically receive new features and bugfixes but avoid breaking changes, use chromaui/action@vX where vX is a major version number (e.g. v10).
• To not receive any updates but pin the action to a specific CLI version, use chromaui/action@vX.Y.Z where vX.Y.Z is a full semver version (e.g. v10.0.0).

The full list of tags is available on GitHub.

Configuration

For more information on the available options, refer to our configuration reference documentation.

Outputs

Chromatic’s GitHub Action returns some information about your build in the form of outputs. The table below lists what’s currently available. Read the official GitHub documentation for more information about outputs.

Run Chromatic on specific branches

If you need to customize your workflow to run Chromatic on specific branches, adjust your workflow like so:

name: "Chromatic"

# 👇 Workflow event to trigger execution
on:
  push:
    branches-ignore:
      - "example" # 👈 Excludes the example branch

Now Chromatic will run for any branch except example.

Other branches, such as the ones created by the Renovate bot, can also be included.

Run Chromatic on large projects

Chromatic is prepared to handle large file uploads (with a limit of 5000 files, including stories and assets). If your project exceeds this limit, we recommend enabling the zip option in your workflow to compress your build before uploading it. For example:

jobs:
  chromatic:
    steps:
      # ... other steps

      - uses: chromaui/action@latest
        with:
          projectToken: ${{ secrets.CHROMATIC_PROJECT_TOKEN }}
          # 👇 Runs Chromatic with the option to compress the build output.
          zip: true

Run Chromatic on monorepos

Chromatic can be run on monorepos that have multiple subprojects. Each subproject will need its project token.

Prerequisites

1. Ensure that you’re in the correct working directory for the subproject.
2. Have the build-storybook npm script in the subproject’s package.json file OR explicitly name the script using the buildScriptName parameter and ensure the script is listed in the subproject’s package.json file.

If you’ve already built your Storybook in a separate CI step, you can alternatively point the action at the build output using the storybookBuildDir parameter.

jobs:
  chromatic:
    runs-on: ubuntu-latest
    steps:
      # ... other steps

      - name: Publish Project 1 to Chromatic
        uses: chromaui/action@latest
        with:
          # 👇 Chromatic projectToken, refer to the manage page to obtain it.
          projectToken: ${{ secrets.CHROMATIC_PROJECT_TOKEN_1 }}
          workingDir: packages/project_1

      - name: Publish Project 2 to Chromatic
        uses: chromaui/action@latest
        with:
          # 👇 Chromatic projectToken, refer to the manage page to obtain it.
          projectToken: ${{ secrets.CHROMATIC_PROJECT_TOKEN_2 }}
          workingDir: packages/project_2

If you want to run Chromatic in parallel for each subproject, you will need to create separate workflow files.

# 👇 Customize the workflow name
name: "Chromatic 1"

on: push

jobs:
  chromatic:
    steps:
      # ... other steps

      - name: Run Chromatic
        uses: chromaui/action@latest
        with:
          # 👇 Chromatic projectToken, refer to the manage page to obtain it.
          projectToken: ${{ secrets.CHROMATIC_PROJECT_TOKEN_1 }}
          workingDir: packages/project_1

# 👇 Customize the workflow name
name: "Chromatic 2"

on: push

# List of jobs
jobs:
  chromatic:
    steps:
      # ... other steps

      - name: Run Chromatic
        uses: chromaui/action@latest
        with:
          # 👇 Chromatic projectToken, refer to the manage page to obtain it.
          projectToken: ${{ secrets.CHROMATIC_PROJECT_TOKEN_2 }}
          workingDir: packages/project_2

Enable TurboSnap

TurboSnap is an advanced Chromatic feature implemented to improve the build time for large projects. By default, it is disabled in your CI environment. To enable it, add the onlyChanged option to the workflow as follows:

jobs:
  chromatic:
    steps:
      # ... other steps

      - name: Run Chromatic
        uses: chromaui/action@latest
        with:
          projectToken: ${{ secrets.CHROMATIC_PROJECT_TOKEN }}
          onlyChanged: true # 👈 Required option to enable TurboSnap

Trigger full rebuilds

By default, TurboSnap relies on Webpack’s dependency graph to determine which files changes since the last build. If you’re working with files processed outside the scope of Webpack (e.g., fonts, images, CSS, external libraries), you can use the externals option to tell Chromatic to rebuild the entire project when a file matching the pattern is changed. For example:

# Other necessary configuration

jobs:
  chromatic:
    steps:
      # ... other steps

      - name: Run Chromatic
        uses: chromaui/action@latest
        with:
          projectToken: ${{ secrets.CHROMATIC_PROJECT_TOKEN }}
          onlyChanged: true # 👈 Required option to enable TurboSnap
          externals: packages/(icons/icons|tokens/src)/**

Multiple file patterns can also be provided as follows:

# ... other config

- name: Run Chromatic
  uses: chromaui/action@latest
  with:
    projectToken: ${{ secrets.CHROMATIC_PROJECT_TOKEN }}
    onlyChanged: true # 👈 Required option to enable TurboSnap
    externals: |
      *.sass
      public/**

Support for environment variables

Environment variables are supported in Chromatic. You can use them to customize your workflow execution or provide project-related variables (e.g., API URLs). Add the env key in the workflow file and provide the necessary variables to enable them. For example:

jobs:
  chromatic:
    steps:
      # ... other steps

      - uses: chromaui/action@latest
        with:
          projectToken: ${{ secrets.CHROMATIC_PROJECT_TOKEN }}
        env:
          # 👇 Sets environment variables
          CHROMATIC_RETRIES: 5
          LOG_LEVEL: "error"

It comes with a caveat if you need to provide project-specific environment variables. We recommend that you prefix each variable with the STORYBOOK keyword and adjust your workflow to the following:

jobs:
  chromatic:
    steps:
      # ... other steps

      - uses: chromaui/action@latest
        with:
          projectToken: ${{ secrets.CHROMATIC_PROJECT_TOKEN }}
        env:
          # 👇 Sets the environment variable
          STORYBOOK_SOME_ENV_VAR: ${{ secrets.STORYBOOK_SOME_ENV_VAR }}

Recommended configuration for build events

GitHub’s Actions, like other CI systems, can run based on any type of event. Our recommendation is to run Chromatic’s step on push events.

While the pull_request event also works, it can cause Chromatic’s baselines to be lost in certain scenarios or cause Chromatic to use an unexpected baseline from the main branch.

GitHub allows workflows to execute on commits pushed to a branch in a pull request or on “merge” commits between that branch and the base branch (main). These merge commits do not persist in your repository’s history. When a GitHub action is triggered on pull_request, GitHub creates an ephemeral branch and merges the PR branch into the latest from main. For details, refer to the pull request workflow docs to understand what GITHUB_SHA and GITHUB_REF are set to.

This means the latest build on main will be an ancestor of this ephemeral branch, even though it is not an ancestor of the actual PR branch. Therefore, it’ll use the incorrect baseline for comparison. That’s why we recommend running Chromatic using the push event.

If you decide to use the pull_request event, we recommend creating a separate workflow for Chromatic using the following strategy for the checkout step:

- uses: actions/checkout@v3
  with:
    fetch-depth: 0
    # 👇 Tells the checkout which commit hash to reference
    ref: ${{ github.event.pull_request.head.ref }}

UI Test and UI Review

UI Tests and UI Review rely on branch and baseline detection to keep track of snapshots. We recommend the following configuration.

Command exit code for “required” checks

If you are using pull request statuses as required checks before merging, you may not want your workflow step to fail if test snapshots render without errors (but with changes). To achieve this, pass the option exitZeroOnChanges to the with clause, and your workflow will continue in such cases. For example:

# Other necessary configuration

jobs:
  chromatic:
    steps:
      # ... other steps

      - name: Run Chromatic
        uses: chromaui/action@latest
        with:
          projectToken: ${{ secrets.CHROMATIC_PROJECT_TOKEN }}
          exitZeroOnChanges: true # 👈 Option to prevent the workflow from failing

When using exitZeroOnChanges, your workflow will still stop and fail if your Storybook contains stories that error.

Re-run failed builds after verifying UI test results

Builds that contain visual changes need to be verified. They will fail if you are not using the exitZeroOnChanges option. Once you accept all the changes, re-run the workflow, and the chromatic job will pass.

If you deny any change, you will need to make the necessary code changes to fix the test (and thus start a new run) to get Chromatic to pass again.

Maintain a clean “main” branch

A clean main branch is a development best practice and highly recommended for Chromatic. This means testing your main branch to ensure builds are passing. It’s important to note that baselines will not persist through branching and merging unless you test your main branch.

If the builds result from direct commits to main, you must accept changes to keep the main branch clean. If they’re merged from feature-branches, you must ensure those branches are passing before you merge into main.

GitHub squash/rebase merge and the “main” branch

GitHub’s squash/rebase merge functionality creates new commits that have no association with the branch being merged. If you’ve enabled our GitHub application in the UI Review workflow, then we will automatically detect this situation and bring baselines over (see Branching and Baselines for more details).

If you’re using this functionality but notice the incoming changes were not accepted as baselines in Chromatic, then you’ll need to adjust the workflow to include a new step with the autoAcceptChanges option. For example:

jobs:
  chromatic:
    steps:
      # ... other steps

      - name: Run Chromatic
        uses: chromaui/action@latest
        with:
          projectToken: ${{ secrets.CHROMATIC_PROJECT_TOKEN }}
          autoAcceptChanges: "main" # 👈 Option to accept all changes on main

Including the autoAcceptChanges option ensures all incoming changes will be accepted as baselines. Additionally, you’ll maintain a clean main branch.

If you want to test the changes introduced by the rebased branch, you can adjust your workflow and include a new step with the ignoreLastBuildOnBranch option. For example:

jobs:
  chromatic:
    steps:
      # ... other steps

      - name: Run Chromatic
        uses: chromaui/action@latest
        with:
          projectToken: ${{ secrets.CHROMATIC_PROJECT_TOKEN }}
          ignoreLastBuildOnBranch: "my-branch" # 👈 Option to ignore the last build on target branch

Including the ignoreLastBuildOnBranch option ensures the latest build for the specific branch is not used as a baseline.

Run Chromatic on external forks of open source projects

You can enable PR checks for external forks by sharing your project token where you configured the Chromatic command (often in package.json or in the pipeline step).

Sharing project tokens allows contributors and others to run Chromatic builds on your project, consuming your snapshot quota. They cannot access your account, settings, or accept baselines. This can be an acceptable tradeoff for open source projects that value community contributions.

Skipping builds for certain branches

Sometimes you might want to skip running a build for a certain branch but still have Chromatic mark the latest commit on that branch as “passed”. Otherwise, pull requests could be blocked due to required checks that remain pending. To avoid this issue, you can run chromatic with the --skip flag. This flag accepts a branch name or glob pattern.

For instance, Dependabot automatically updates the dependencies of a project. Although some dependencies can result in UI changes, you might not find it worthwhile to run Chromatic for every dependency update. Instead, you could rely on Chromatic running against the main or develop branch. One use case for this feature is skipping builds for branches created by a bot.

To skip builds for dependabot branches, use the following:

jobs:
  chromatic:
    steps:
      # ... other steps

      - name: Run Chromatic
        uses: chromaui/action@latest
        with:
          projectToken: ${{ secrets.CHROMATIC_PROJECT_TOKEN }}
          skip: "dependabot/**" # 👈 Option to skip Chromatic for certain branches

To apply this to multiple branches, use an “extended glob”. See the globs guide for details.

skip: "@(renovate/**|dependabot/**)"

Skip Chromatic in a Monorepo when no UI files have changed

Sometimes you might want to skip running Chromatic when no UI files have changed in a monorepo. This can be useful when you have multiple projects in a monorepo and only want to run Chromatic when UI files have changed in a specific project. To achieve this, you can use the GitHub Action tj-actions/changed-files to check if any UI files have changed.

Here is an example configuration.

name: 🚀 Deploy

on:
  push:
    branches:
      - main
      - dev
  pull_request:

concurrency:
  group: ${{ github.workflow }}-${{ github.ref }}
  cancel-in-progress: true

permissions:
  actions: write
  contents: read

jobs:
  changed-files:
    runs-on: ubuntu-latest
    name: changed-files
    outputs:
      all_changed_files: ${{ steps.changed-files.outputs.all_changed_files }}
      any_changed: ${{ steps.changed-files.outputs.any_changed }}
    steps:
      - uses: actions/checkout@v4
        with:
          fetch-depth: 0
      - name: Get changed files
        id: changed-files
        uses: tj-actions/changed-files@v44
        with:
          files: |
            app/**
            .storybook/**

  chromatic:
    name: Run visual tests
    needs: [changed-files]
    if: ${{ needs.changed-files.outputs.any_changed == 'true' }}
    uses: ./.github/workflows/chromatic.yml
    secrets: inherit

Once you have the changed files, you can use the output to determine if you should run Chromatic.

name: Chromatic

on: workflow_call

concurrency:
  group: ${{ github.workflow }}-${{ github.ref }}-chromatic
  cancel-in-progress: true

permissions:
  actions: write
  contents: read

jobs:
  chromatic:
    name: Chromatic
    runs-on: ubuntu-latest
    steps:
      - name: ⬇️ Checkout repo
        uses: actions/checkout@v4
        with:
          fetch-depth: 0

      - name: ⎔ Setup node
        uses: actions/setup-node@v4
        with:
          cache: npm
          cache-dependency-path: ./package.json
          node-version: 20
      - name: 📥 Install deps
        run: npm install
      - name: Build Storybook
        run: npm run build-storybook
      - name: ⚡ Run chromatic
        uses: chromaui/action@latest
        # Chromatic GitHub Action options
        with:
          # 👇 Chromatic projectToken, refer to the manage page to obtain it.
          exitZeroOnChanges: true
          exitOnceUploaded: true
          onlyChanged: true
          skip: "@(renovate/**|dependabot/**)"

One final thought is that you if need to debug the changed-files workflow, you can add the following command after the - name: Get changed files step to print the changed files.

- name: List all changed files
  env:
    ALL_CHANGED_FILES: ${{ steps.changed-files.outputs.all_changed_files }}
    ANY_CHANGED: ${{ steps.changed-files.outputs.any_changed }}
  run: |
    for file in ${ALL_CHANGED_FILES}; do
      echo "$file was changed"
      echo Did any files change: ${ANY_CHANGED}
    done
